Introduction
Together with engeneering student Mathias Neerup we have built a working spark gap tesla coil. The first system was a small 32mm coil, but that quickly evolved into the 50mm system displayed here.
SGTC
Specifications
| Power supply | variable power supply 0-30VDC 8A |
| MMC bank | 3 parallel strings with 6 capacitors in each. FKP capacitor 47nF 2000v for a total of 23,5nF and 12kV |
| Primary coil | 70mm with 2mm copper wire and about 2.5 turns |
| Secondary coil | 50mm PP pipe, 400mm long, 1200 windings, 0.25mm enameled copper wire. |
| Topload | 45mm styrofoam tororid covered with aluminium tape. 202mm dia. |
| Spark length | about 400mm |
| Transformer | Flyback from crt monitor |
| Driver | ZVS driver |
-
- 32mm coil with brass ball topload
-

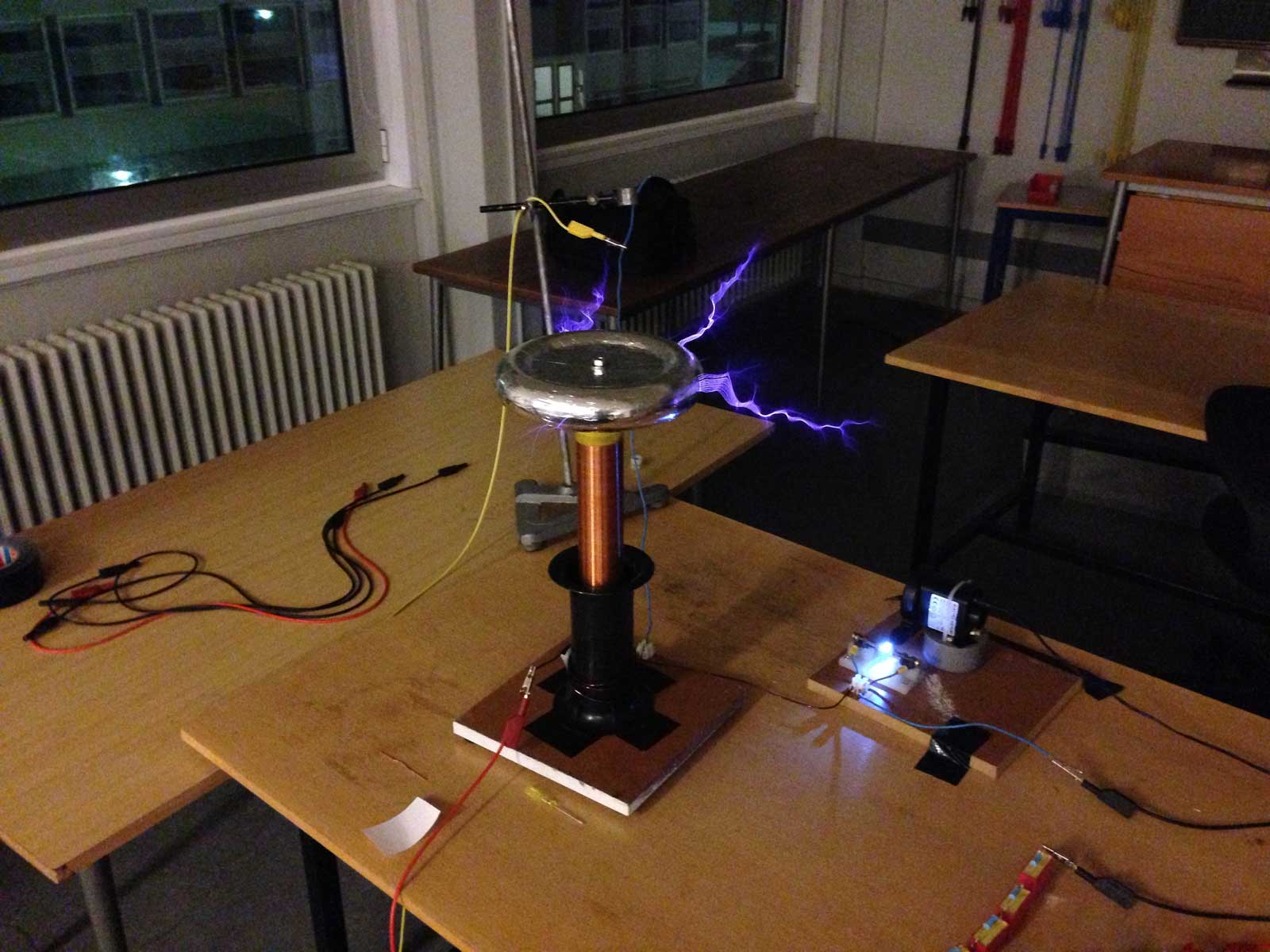

- SGTC
Description

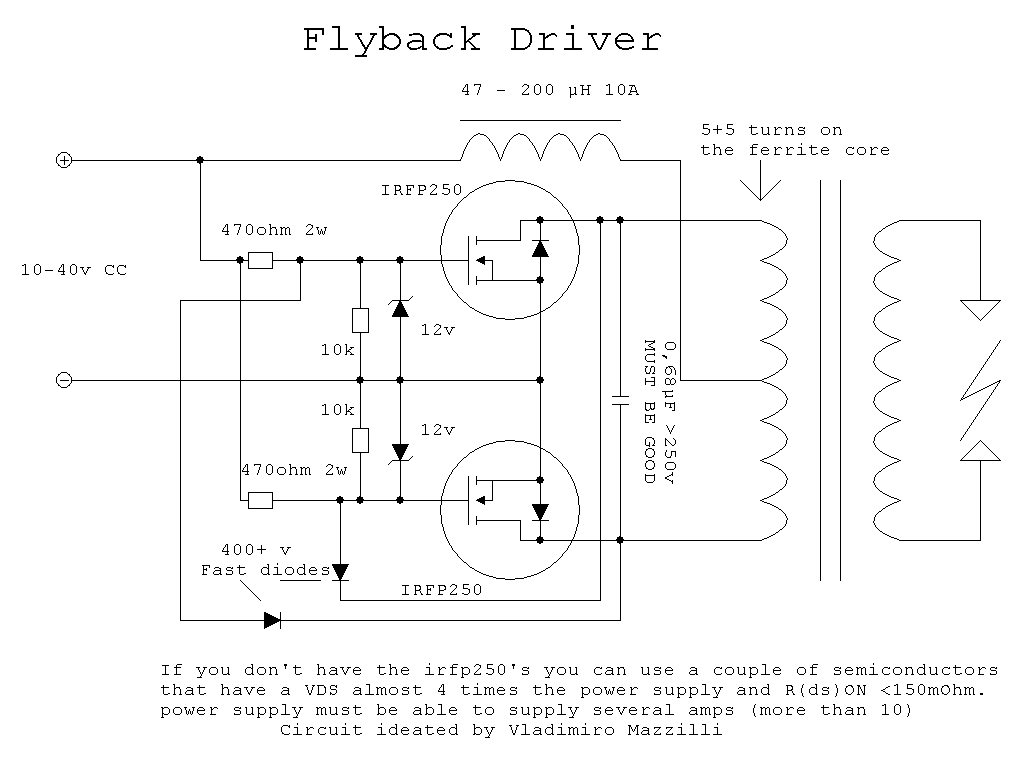

The ZVS driver was made with this diagram:
Circuit designed by Vladimiro Mazzilli.
Circuit designed by Vladimiro Mazzilli.
Video of the coil running:
Urgent! What is the value of resistance at the top of the capacitors ??
Are you asking for the resistance across the capacitors?
Yeah. How many ohms?
there is a 1m ohm bleed resistor across each of the capacitors.
1 m ohms instead of 10 megohms olurmu. How many V / W?
